Cut-off wheels, also known as cutting discs, are bonded abrasive tools designed for straight-line cutting of metal and other hard materials. They are commonly used on angle grinders and stationary cutting machines to cut steel profiles, pipes, sheets, and structural components.

Unlike grinding wheels, which are intended to remove material and shape surfaces, cut-off wheels are optimized for penetration speed, cutting stability, and minimal material loss. Their performance directly affects cutting efficiency, heat generation, burr formation, and operator safety.

From a manufacturing perspective, a cut-off wheel is not a simple consumable. It is a composite product whose behavior depends on abrasive grain selection, bond formulation, fiberglass reinforcement, pressing method, and curing control. Small changes in any of these factors can lead to large differences in cutting feel, wheel life, and breakage risk.

This page explains how cut-off wheels are made, how different designs behave in real use, and how to choose the right product based on material, application, and operating conditions.

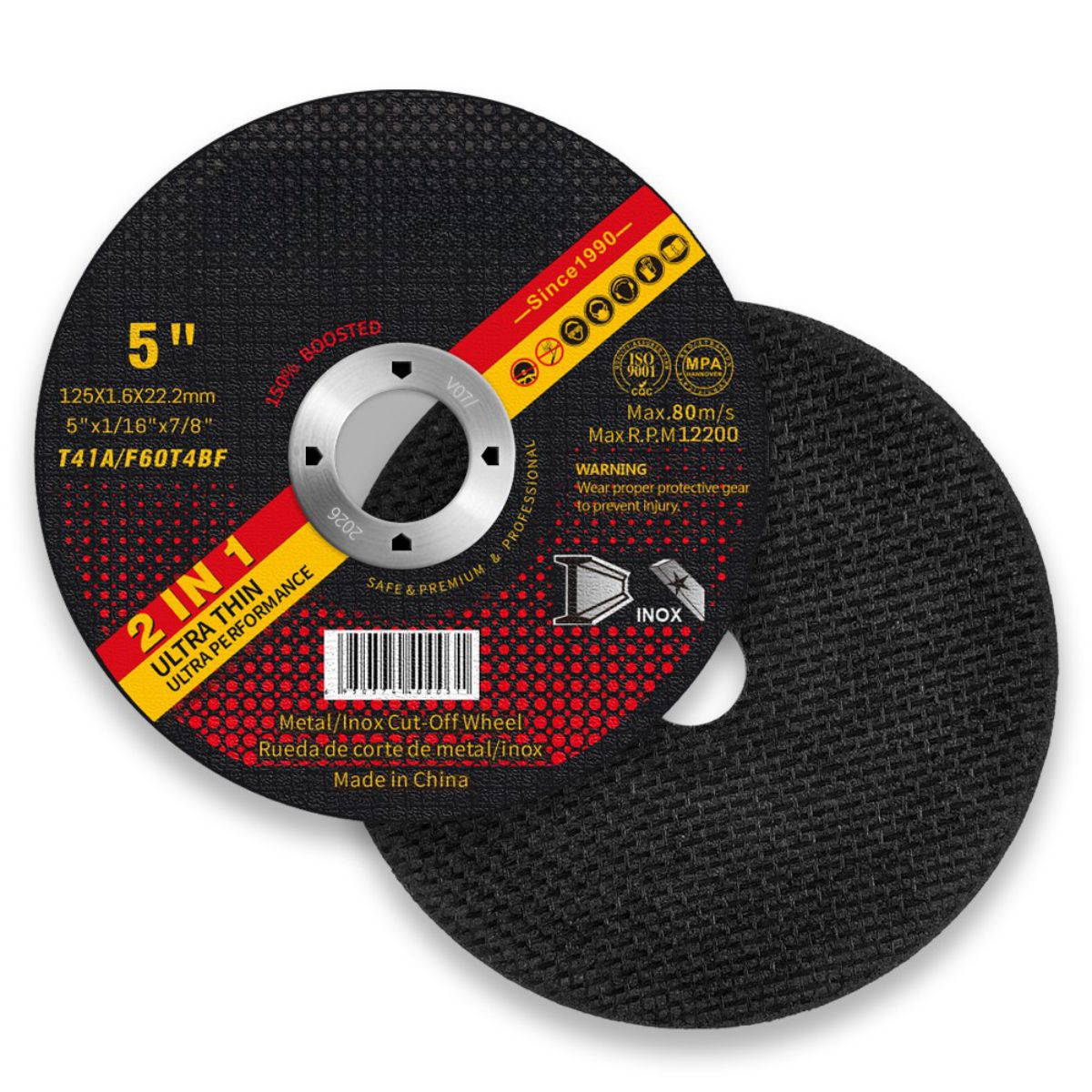

Flat cut-off wheels, often referred to as Type 1 or T41, are the most widely used cutting discs. They have a straight profile and are designed for perpendicular cutting.

Они обычно используются для:

• Carbon steel bars and profiles

• Трубы и трубки

• Листового металла

• General fabrication work

Flat wheels provide good control and consistent cutting depth, especially when the tool is kept square to the workpiece.

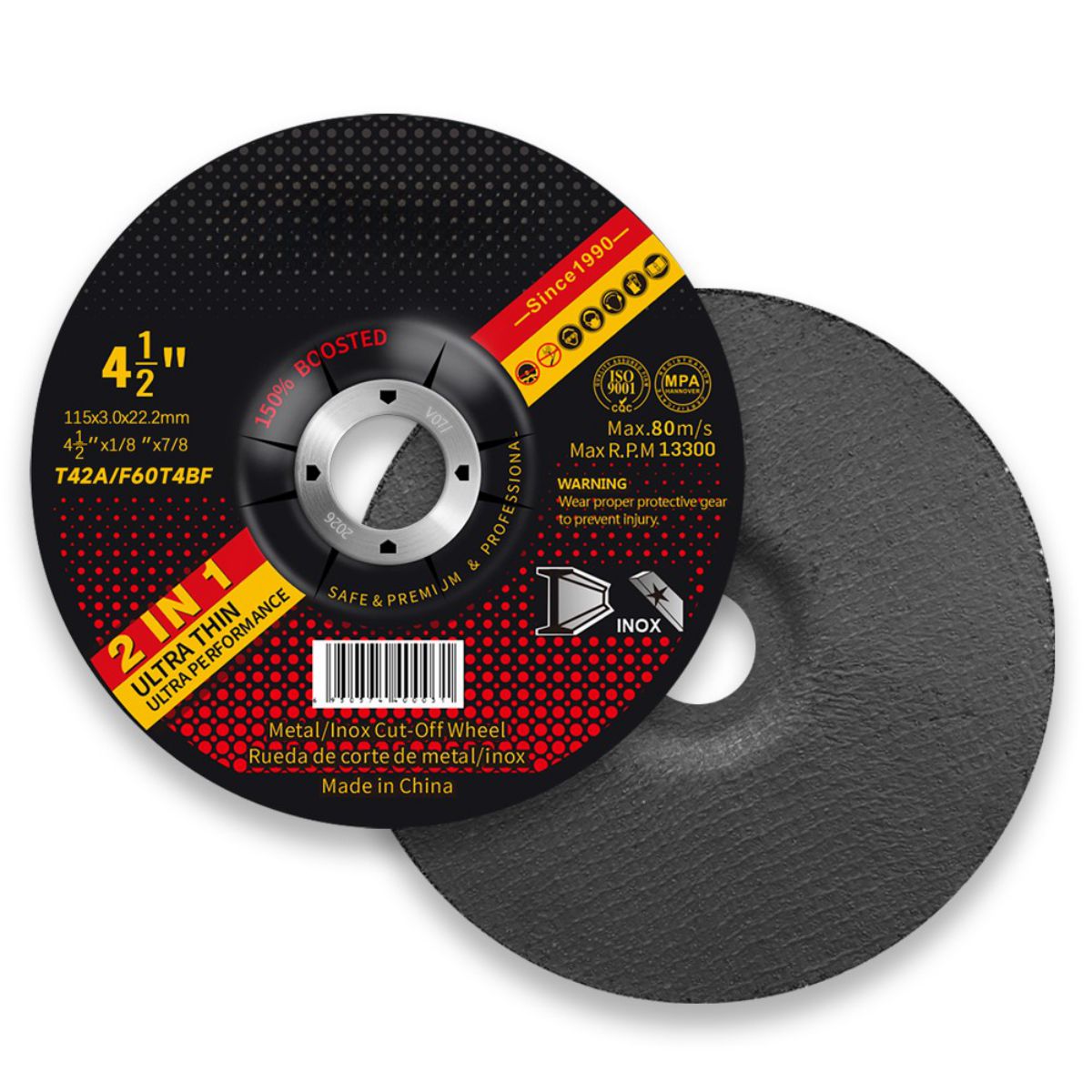

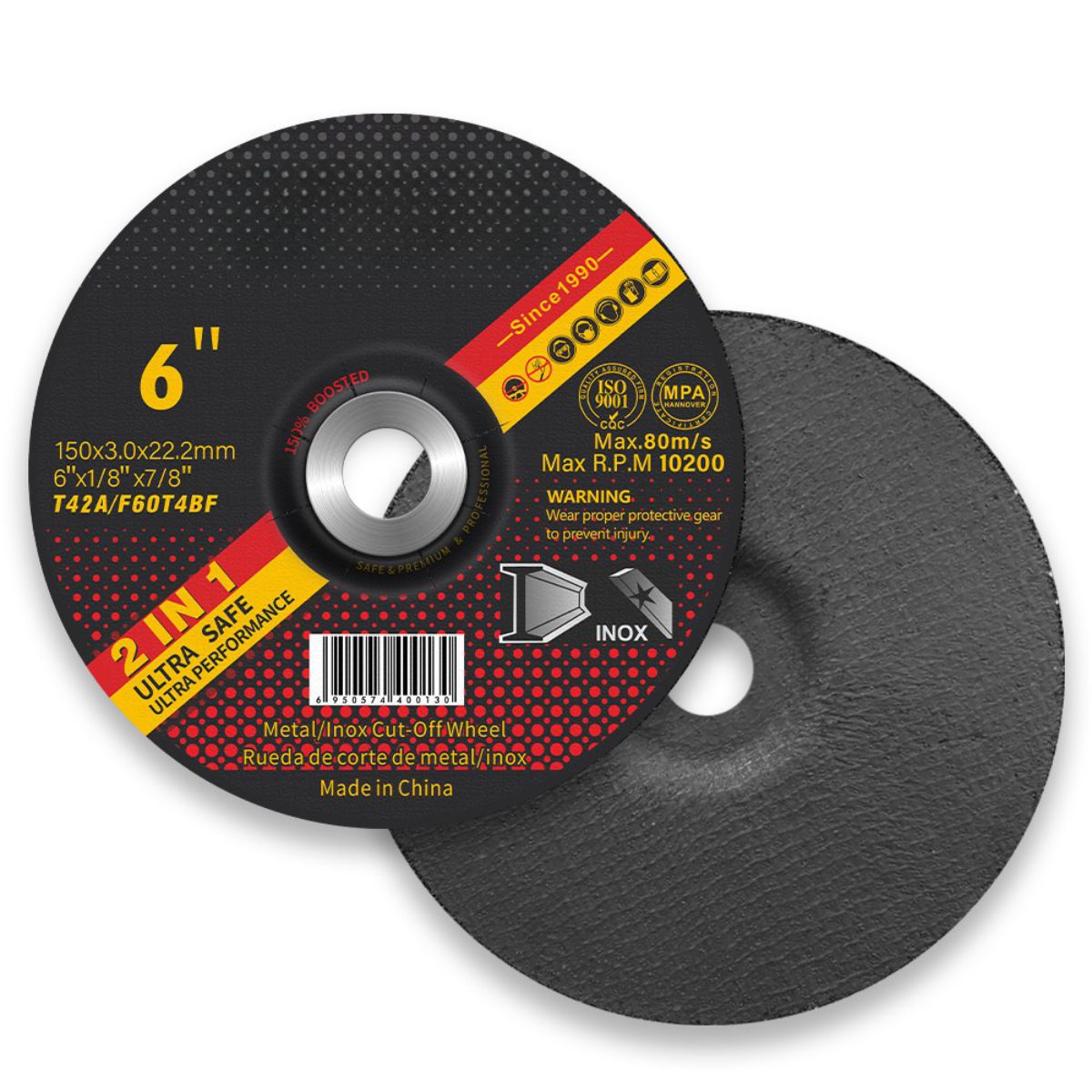

Depressed center cut-off wheels, sometimes identified as T42, have a recessed hub area. This design allows better clearance between the grinder body and the workpiece.

They are typically selected when:

• Slight angular cutting is required

• Зазор для инструмента ограничен

• Operators prefer improved handling

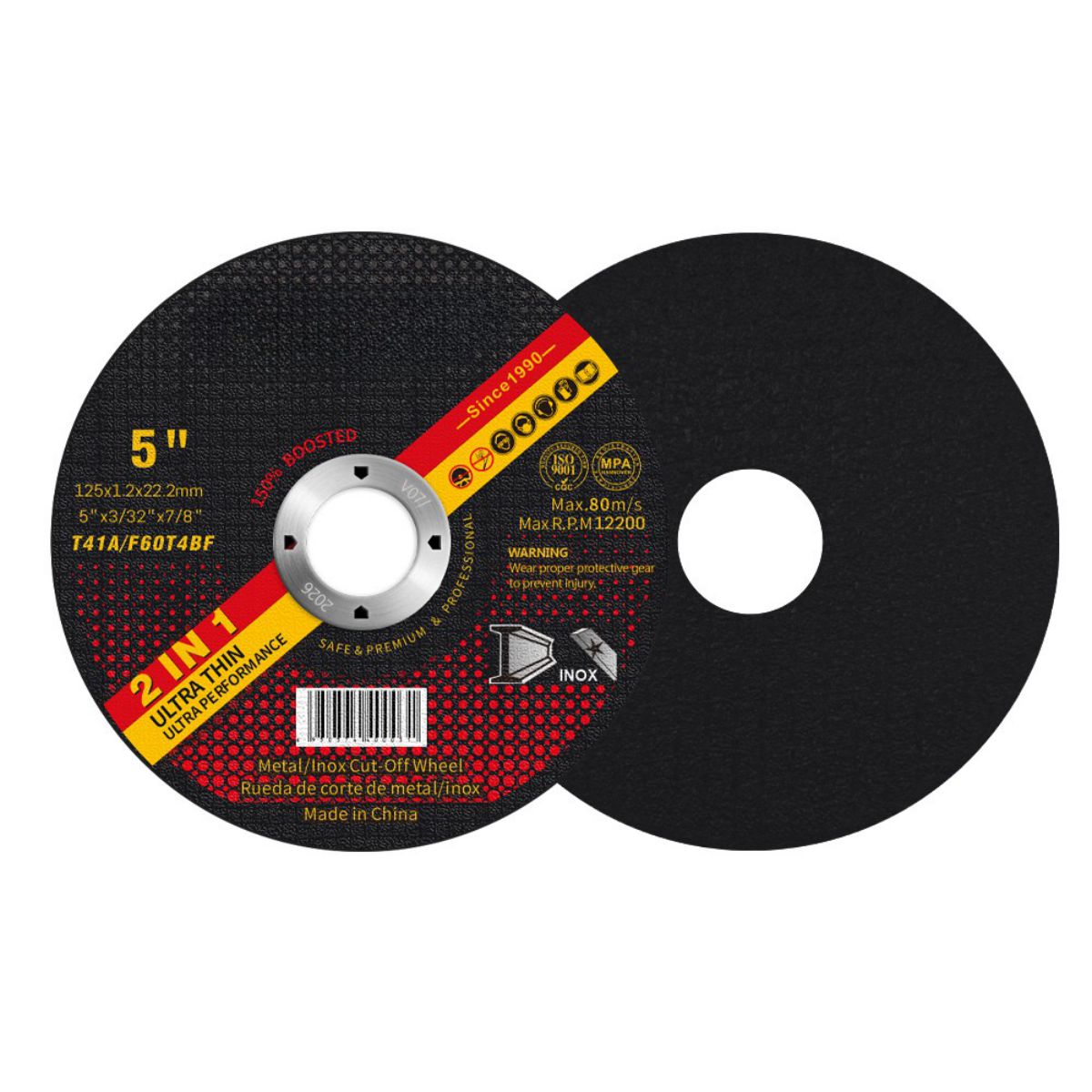

Super thin cut-off wheels, typically 1.0 mm or 1.2 mm thick, are designed for high-speed cutting with low cutting resistance.

In practice, thinner wheels offer:

• Faster cutting speed

• Reduced heat input

• Cleaner cut edges

• Lower burr formation

They are widely used for stainless steel and thin-wall materials, where excessive heat can cause discoloration or deformation.

However, thin wheels also place higher demands on manufacturing consistency and reinforcement design. This is one of the reasons why not all thin cut-off wheels perform equally in real-world use.

Large diameter cut-off wheels, generally above 300 mm, are used on stationary cutting machines or heavy-duty equipment. These wheels require stricter control of balance, density, and reinforcement due to higher peripheral speeds and cutting loads.

Aluminum oxide is the most commonly used abrasive for metal cutting. It offers stable performance and good durability for carbon steel and general metal applications.

White aluminum oxide has higher purity and friability. In stainless steel cutting, it fractures more easily, exposing new sharp edges and reducing heat buildup. This is why white aluminum oxide is often preferred for inox applications.

Zirconia abrasives are tougher and more impact-resistant. They are often promoted as a premium option, but in real production and usage, zirconia is not always the best choice.

In applications with sufficient cutting pressure and stable operation, zirconia provides long service life. However, in high-speed, low-pressure cutting, an optimized aluminum oxide formulation can perform equally well or better, especially in terms of cutting stability and cost efficiency.

In manufacturing, abrasive selection is not about choosing the most expensive grain, but about matching grain behavior to the actual cutting conditions.

Silicon carbide is sharp and brittle, making it suitable for non-ferrous metals and certain hard or brittle materials.

Ceramic abrasives represent advanced grain technology with microcrystalline structures. They offer aggressive cutting and long life in demanding industrial applications, but require precise bond control and are typically used in higher-end products.

Most cut-off wheels for metal cutting use resin bonding systems. Resin bonds provide flexibility, shock resistance, and reliable cutting performance at high speeds.

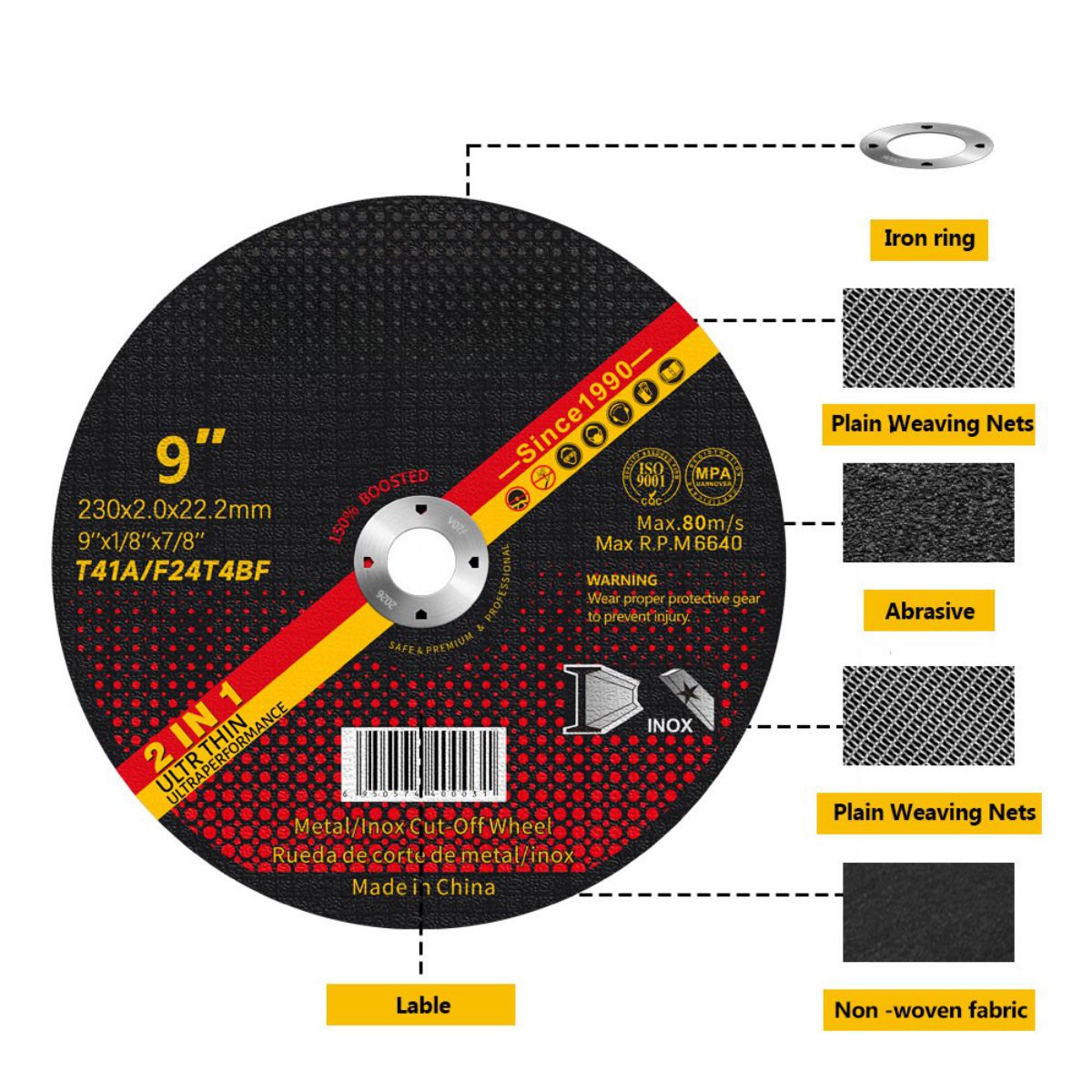

Reinforcement is critical for safety and stability. A commonly used industrial structure is the 2+1 fiberglass sandwich reinforcement, where two mesh layers are placed near the surfaces and one additional layer is embedded internally.

This structure improves:

• Burst resistance

• Edge stability

• Cutting safety at high RPM

For thin cut-off wheels, reinforcement design plays a decisive role. Insufficient reinforcement often leads to edge cracking or sudden breakage, even when the abrasive quality appears acceptable.

Cut-off wheels can be produced using cold pressing, hot pressing, or semi-hot pressing.

Cold pressing is widely used for standard products and offers good dimensional control. However, in ultra-thin specifications, cold pressing alone may result in density variation at the wheel edge.

In actual production, semi-hot or hot pressing is often applied selectively to thin cut-off wheels to improve density uniformity and edge strength. Although this increases manufacturing cost, it significantly reduces the risk of edge cracking during high-speed cutting.

This is a practical example where manufacturing decisions are driven by real performance, not by production efficiency alone.

After pressing, cut-off wheels undergo a curing process to polymerize the resin bond. In professional manufacturing, curing is performed within industry-accepted temperature and time ranges validated by resin chemistry and wheel thickness.

Proper curing ensures:

• Stable mechanical strength

• Стабильное режущее поведение

• Reliable shelf life

Over-curing can make a wheel too brittle, while under-curing can lead to soft bonds and premature wear. This balance is one of the most sensitive aspects of cut-off wheel production.

Professional manufacturers implement multiple quality control steps, including:

• Контроль размеров

• Visual inspection for surface defects

• Speed and burst testing in accordance with EN12413

• Balance checks for larger diameters

These procedures are essential to ensure safety and consistency, especially for export markets.

Cut-off wheels are used across a wide range of industries, including metal fabrication, construction, maintenance, and industrial manufacturing.

In export markets such as Southeast Asia, South America, and the Middle East, environmental conditions and usage habits vary significantly. Higher ambient temperatures and longer continuous cutting cycles place greater stress on bond systems and reinforcement structures.

In such environments, manufacturing stability and formulation consistency often matter more than nominal abrasive grade.

Thin cut-off wheels are often selected for speed, but they are not suitable for every application.

For example:

• Heavy side pressure can cause thin wheels to flex and crack

• Unstable workpieces increase breakage risk

• Using a cut-off wheel for grinding is unsafe and incorrect

In some cases, a slightly thicker wheel results in lower overall cost due to improved stability, longer service life, and safer operation.

Professional suppliers should clearly communicate these limitations instead of promoting a single solution for all scenarios.

Selecting a cut-off wheel should start with the material being cut:

• Carbon steel generally works well with aluminum oxide or zirconia

• Нержавеющая сталь выигрывает от использования белого оксида алюминия или оптимизированных циркониевых составов

Thickness selection is equally important. 1.0 mm and 1.2 mm wheels are ideal for precision cutting and reduced heat input, while thicker wheels may be more appropriate for rough or unstable conditions.

Machine compatibility, operating speed, and safety requirements must always be considered.

Professional cut-off wheel manufacturers typically offer OEM and customization options, including:

• Корректировка состава абразива

• Wheel thickness and hardness control

• Arbor size customization

• Дизайн этикетки и упаковки

• Private branding

However, responsible manufacturers also define clear technical boundaries. Certain combinations of thickness, diameter, and operating speed may be rejected if they compromise safety or performance.

This balance between customization and technical responsibility is an important indicator of manufacturing professionalism.

High-quality cut-off wheels are produced in compliance with recognized safety standards such as EN12413 for bonded abrasives. Compliance ensures that products meet minimum safety requirements for burst resistance and operational stability.

Standards compliance should be viewed as a baseline, not as a substitute for good manufacturing practice.

Cut-off wheels are engineered products that require careful material selection, controlled manufacturing processes, and strict quality management. Their performance in real-world use is determined not by a single factor, but by the combined effect of design decisions made during production.

For buyers and distributors, understanding these fundamentals helps in selecting reliable products and evaluating suppliers beyond surface-level specifications.

We offer a wide range of cutting discs for efficient cutting of different materials. Each cutting disc is strictly quality controlled and suitable for all types of angle grinders to meet industrial durability requirements.

Applicable materials: Steel

Binder type: Resin bond, reinforced fiber

Типа абразива: Aluminium Oxide A

Характеристики:

• Super hardness T grade

• Extremely high cutting performance and long service life

• Suitable for cutting thin plates, profiles, solid metal materials

• Maximum speed up to 15,200 RPM

Recommended applications:

• Fast cutting: 1.6mm / 2.0mm

• Versatile cutting: 2.5mm

• High stability cutting: 3.0mm

Applicable materials: Steel / Stainless steel (INOX)

Типа абразива: Aluminium Oxide A

Характеристики:

• Hardness I grade, taking into account both cutting force and wear resistance

• Low burr cutting, high stability

• More versatile, suitable for various industrial needs

• Maximum speed 15,200 RPM (depending on the specification)

Applicable materials: Steel / Stainless steel (INOX) Типа абразива: Aluminium Oxide A Характеристики:

• Medium hardness Q grade, balanced performance
• Excellent multi-purpose performance and long life
• Available in thicknesses from 1.6mm to 3.0mm
• Suitable for angle grinders of various output powers

Our grinding wheels and abrasive cutting wheels are suitable for angle grinder discs, providing efficient cutting.

Applicable materials: Stone / Cast iron Типа абразива: Silicon Carbide C Характеристики:

• Extremely high hardness R(C) for high-intensity cutting operations
• Excellent lateral stability and extra-long life
• Suitable for cutting natural stone, artificial stone, refractory bricks, cast iron and non-ferrous metals
• Maximum speed: 15,200 RPM (depending on the specification)

• Улучшения проверенных и надежных продуктов, максимизация эффективности вашего инструмента.

• Прецизионное шлифование, обеспечивающее поверхность без царапин на вашей заготовке.

• Значительно увеличенный срок службы инструмента, проверенный в реальных условиях эксплуатации.

Qing Yang – это наша тщательно разработанная линейка брендов, направленная на предоставление вам разнообразного ассортимента высокопроизводительных, высококачественных и экономически эффективных продуктов. Каждый абразивный инструмент Qing Yang проходит строгие испытания компонентов и производственных процессов, соответствует отраслевым стандартам и пользуется доверием инженеров по всему миру. Только когда мы на 100% уверены в его превосходном качестве, мы маркируем его брендом Qing Yang – это ваша гарантия качества.

As a professional cutting disc manufacturer, Qing Yang® provides in-depth cutting disc customization services (OEM/ODM) to meet the personalized needs of global industrial customers. We support multi-dimensional technical customization, including:

1. ​​Dimensional specification adaptation​​: We can produce a full range of sizes from 3-inch cutting wheel to 14-inch cutting wheel, accurately control thickness parameters (such as the critical 2.5mm ultra-thin design to optimize cutting efficiency), and customize the aperture according to equipment requirements (such as 25.4mm standard or special specifications).

2. ​​Material and process upgrade​​: Optimize the bonded abrasive formula for metal cutting discs or stone cutting discs application scenarios, including options for ceramic cutting discs and granite cutting discs wholesale; support surface modification processes such as high temperature resistant coating and anti-static treatment to match the same level performance requirements of Norton and Klingspor.

3. ​​Brand exclusive design​​: Based on the needs of cutting disc brand construction, we provide full-process packaging solutions (including customized printing, color identification system) and proprietary technical documents to help customers develop regional markets.

Our customized services cover all categories of products, including angle grinder cutting discs, heavy-duty cutting discs (300mm metal cutting discs), etc. Our technical team can replicate parameters or enhance performance based on the samples provided by customers, and also support small batch proofing and verification.
